DMF-50174ZNB-FW-BCN supports display 320240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.2(W)86.4(H) mm, outline size of 174(W)112(H) mm, net weight of 300g. As a STN, Blue mode, Transmissive LCM product, DMF-50174ZNB-FW-BCN can provides 50 cd/m² display brightness 4:1 transimissive contrast ratio, best view direction on 6 o'clock , and response time of 100/360 (Typ.)(Tr plus Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, external backlight driver is additionally needed. DMF-50174ZNB-FW-BCN utilizes Parallel Data (4-bit) as it's signal inputting systerm, which connected by 14 pins Connector with power supply voltage of 5.0V (Typ.).

OPTREXLCDDMF-50174ZNB-FW-BCN
Marka ploče	OPTREX
Model panela	DMF-50174ZNB-FW-BCN
Veličina ploče	5.7 inches
Vrsta ploče	STN-LCD , LCM
Rezolucija	320240 QVGA 70 PPI
Format piksela	Pravokutnik
Područje prikaza	115,2 (vodoravno)86.4 (okomito) mm
Veličina obrisa	174 112 (HVD)
Svjetlina	50 cd/m² (Typ.)
omjer kontrasta	4:1 (tip.) (mjenjač)
Način prikaza	STN, plavi način rada, prijenosni
Najbolji pogled na	6 o'clock
Vrijeme odziva	100/360 (Typ.) (Tr plus Td) ms
Boje prikaza	Monochrome
Vrsta svjetiljke	CCFL 1 kom, 15K sati, bez vozača
Ekran na dodir	Bez
Težina ploče	300g
Koristi za	Industrijski
Sučelje signala	Paralelni podaci (4-bitni), konektor 14 pinova
Ulazni napon	5.0V (tip.)
Okoliš	Radna temperatura: 0 50 stupnjeva; Temperatura skladištenja: -20 60 stupnjeva

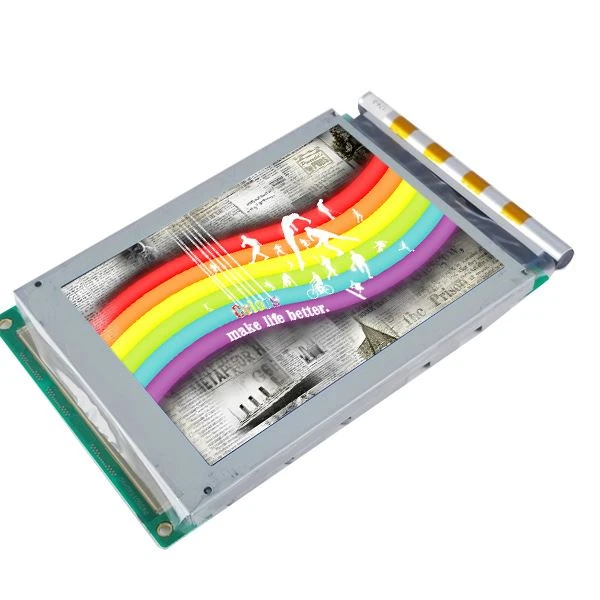

Originalni DMF-50174ZNB-FW-BCN LCD zaslon
